CONTENTS
YOUR T7PXR INCLUDES THE FOLLOWING COMPONENTS:

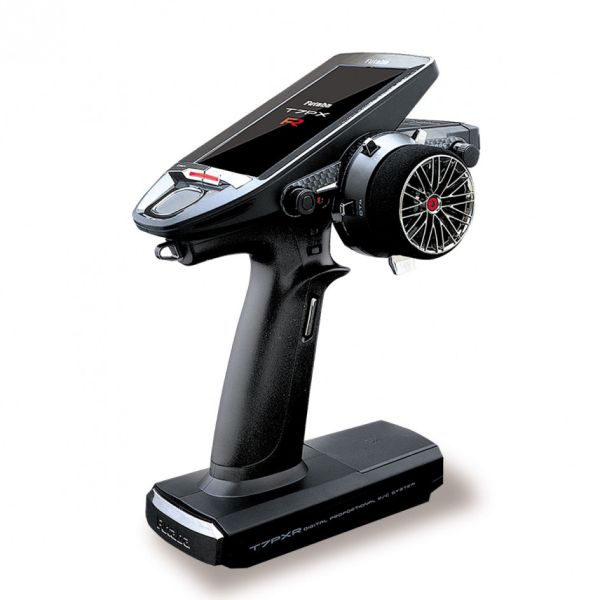

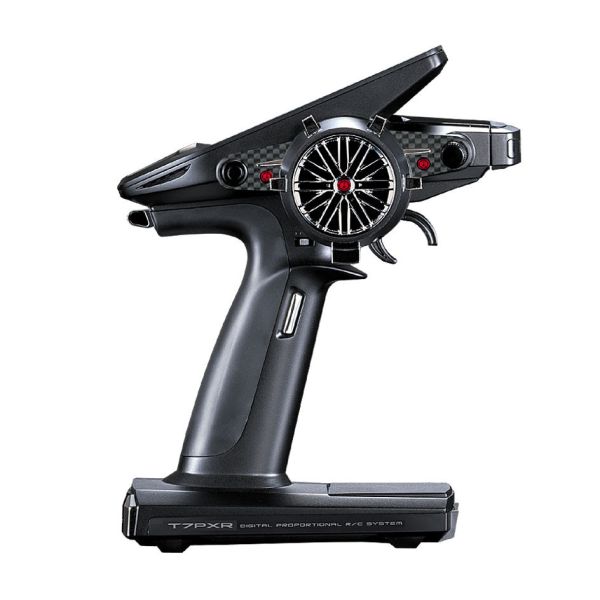

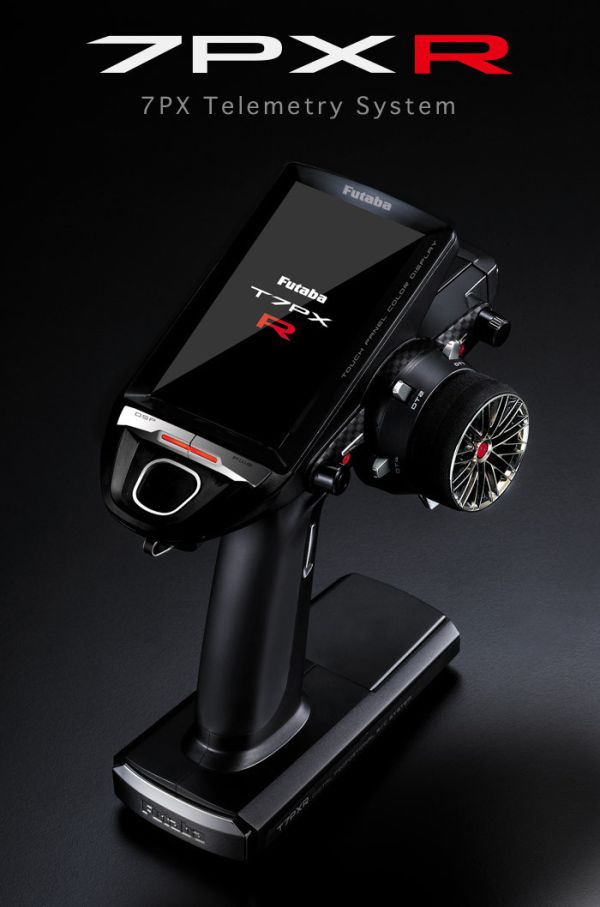

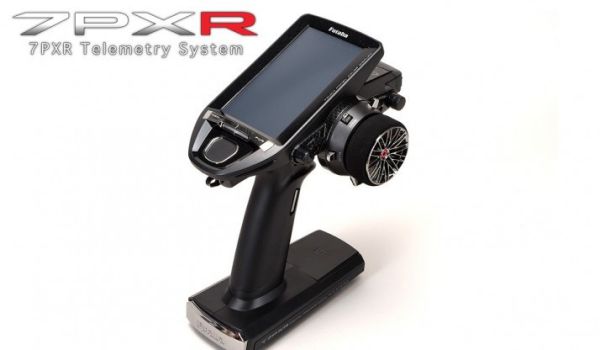

- T7PXR Transmitter
- R334SBS OR R334SBS-E Receiver
- Dry Battery Holder
- Wheel Offset Adapter
- Wheel Adapter 32°
- Large Diameter Steering Wheel (54 mm)
- Trigger Brake Lever (Narrow Type)
- Miniature Screwdriver
- Screen Protector
- 3 x Receiver Plugs
TRANSMITTER SPECS
WHEEL SYSTEM, 7 CHANNELS (S-FHSS SYSTEM), 4 CHANNELS WITH TFHSS-SR, T-FHSS, FASST SYSTEM
TRANSMITTING FREQUENCIES:
2.4 GHz band/ -Transmitting RF power output: 100 mW EIRP
PROTOCOLS:
T-FHSS-SR/T-FHSS/S-FHSS/FASST-C2
POWER REQUIREMENT:
Ni-MH – NT5F1800B (6 V)
LiFe – FT2F1700BV2 (6.6 V)
CURRENT DRAIN:
350 mA or less (When the T-FHSS, Vibration off, back lighting on)
TRANSMITTING ANTENNA:
1/2λ dipole

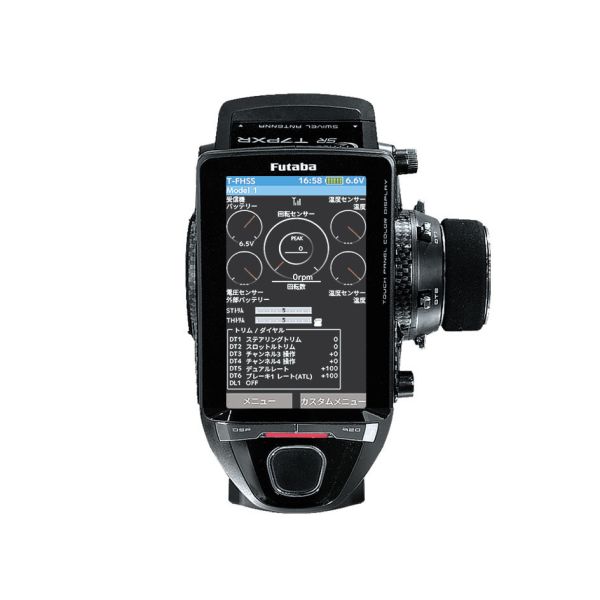

4.3 INCH BACKLIT COLOR TFT LIQUID CRYSTAL TOUCH PANEL*
*When you turn on your 7PXR, bright dots may appear on your screen display. Your display contains an extremely large number of TFT and is manufactured using high-precision technology. Any bright dots that may appear on your display are intrinsic of the TFT manufacturing technology.
RECEIVER SPECS
R334SBS
T-FHSS SR
SIZE:
33.9 x 22.3 x 11.3 mm
1.33 x 0.88 x 0.44 in
WEIGHT:
7.5 g
0.26 oz
OPERATING VOLTAGE:
DC 3.7-7.4V
R334SBS-E
T-FHSS SR
SIZE:
33.9 x 22.3 x 11.3 mm
1.33 x 0.88 x 0.44 in
WEIGHT:
7.2 g
0.25 oz
OPERATING VOLTAGE:
DC 3.7-7.4V
