商品詳情
送信機との対応について
(FASSTest 12ch-mode ではこれらのセンサーは使用できませんのでご注意ください)
|

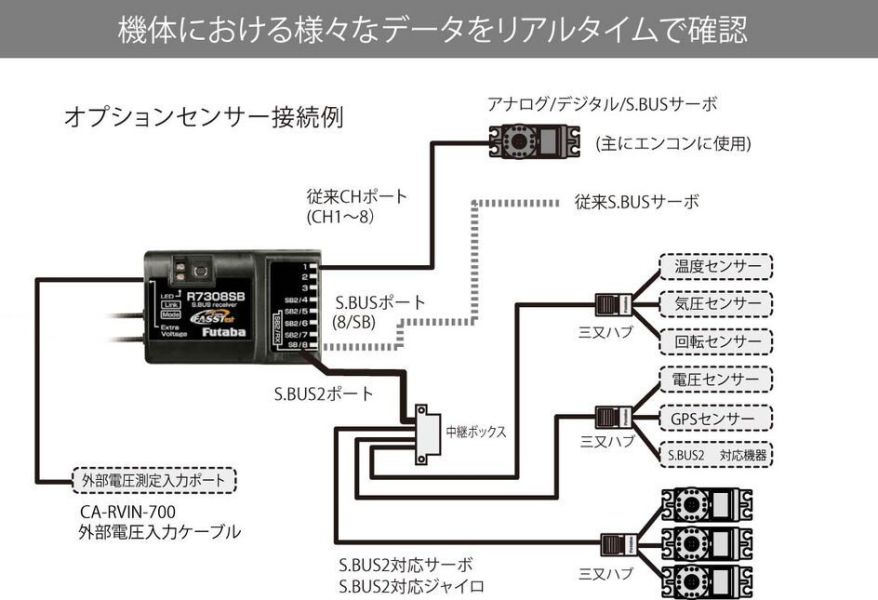

オプションセンサー |
センサー | SBS-02G | SBS-02A | SBS-01C | CA-RVIN-700 | SBS-01V | SBS-01ML |
| 用途 | GPS | 高度 | 電流 | 外部電圧 | 外部電圧 | MAVLINK | |
|
T32MZ-WC, |
18ch-mode,T-FHSS | ● | ● | ● | ● | ● | × |
| 26ch-mode | ● | ● | ● | ● | ● | × | |
|
T26SZ PRO,T26SZ |
18ch-mode,T-FHSS | ●※注1 | ●※注1 | ● | ● | ● | ● |
| 26ch-mode | ●※注1 | ●※注1 | ● | ● | ● | ●※注10 | |
| T16IZS | ●※注1 | ●※注1 | ● | ● | ● | ● | |
| T18SZ,T16SZ,FX-36 | ●※注1 | ●※注1 | ●※注4 | ● | ● | × | |
|
オプションセンサー |
センサー | SBS-01TAS | SBS-01S | SBS-01RB | SBS-01RO | SBS-01RM | SBS-01T | SBS-01TE |
| 用途 | 対気速度 | サーボ | 回転(BL用) | 回転(光学) | 回転(磁気) | 温度(円筒形) | 温度(貼付) | |
|
T32MZ-WC, |
18ch-mode,T-FHSS | ● | ● | ● | ● | ● | ● | ● |
| 26ch-mode | ● | × | ● | ● | ● | ● | ● |
|
|
T26SZ PRO,T26SZ |
18ch-mode,T-FHSS | ● | ● | ● | ● | ● | ● | ● |
| 26ch-mode | ● | × | ● | ● | ● | ● | ● |
|
| T16IZS | ● | ● | ● | ● | ● | ● | ● | |
| T18SZ,T16SZ,FX-36 | ●※注7 | ●※注3 | ● | ● | ● | ● | ● | |
|
対応機種 |
ESC | MC-980H/A | MC-9130H/A | MC-9200H/A |
|
T32MZ-WC, |
18ch-mode,T-FHSS | ● | ● | ● |
| 26ch-mode | × | × | × | |
|
T26SZ PRO,T26SZ |
18ch-mode,T-FHSS | ● | ● | ● |
| 26ch | × | × | × | |
| T32MZ(Ver.3.9まで),T16IZ | ● | ● | ● | |
| T16IZS | ● | ● | ● | |
| T18MZ-WC,T18MZ | × | × | × | |
